Struxx iPad Stand

Just got an iPad? Got an empty wallet? Wondering what to do with that Struxx robot you bought last year and left, forgotten, under the bed in the spare room?

Have no fear, mygadgetlife has the answer!*

Ok, I admit it, I had a... let's call it a nerdgasm, because let's face it - anyone with an iPad soon finds out that the device spends a lot of its time on its back when not being supported by hands or lap. Not much use for the fancy pants photo frame mode let alone the video playback mode.

Oh sure, you can prop up your iPad or couple it with Velcro, or you can just buy a stand. Have you seen the prices for some of the stands?

With that in mind, I sought a DIY solution and ended up discounting Lego, down to lack of confidence in its structural integrity. Fine for an iPod touch, but not for the iPad.

Then I remembered Struxx, the alternative construction toy.

What you'll need is shown below.

For the spars, you'll need 3 x 14 length, 2 x 12 and an 8.

Start by fitting a ball-socket to each of the spars. It helps if both sockets are in the same orientation at each end of the spar.

Next, form a triangle with vertices of 3 x size 14 spars, with 3 x 3-way ball joints. Angle the ball joints about 45 degrees so that the axis is pointed inwards.

Position the triangle so that the shortest side faces you. This is the front. Clip the two size 12 spars to the left and right ball joints, then clip a 8 spar to the back.

Position the triangle so that the point faces away from you. Clip a further two 12 spars to the left and right ball joints, then clip a 8 spar to the back corner.

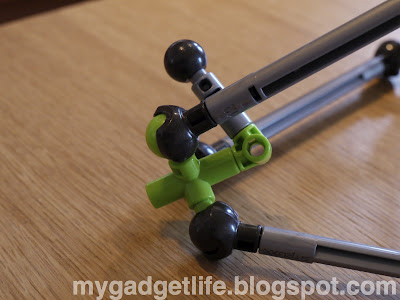

Bring all the spars together and join them with a further 3 way ball joint.

Take the 75 degree angle joints and fit a single ball joint to each. Fit the angle joints to the inner left and right axis of the 3 way ball joints so that they poke out of the frame. These are what the iPad will rest on.

Take the 2 way ball joint and fit it to the axis of the top 3 way ball joint. To this fit the parts with the vinyl tips that were the robot's fingers. Angle the fingers slightly up and out to provide a suitable angle for you iPad.

You're just about ready, but first even up the frame a bit, make sure your angles are symmetrical and that the thing lies evenly on a flat surface.

There you have it, an iPad stand made out of Struxx.

*of course, it goes without saying, but build and use this at your own risk!
